| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | SX-60 |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD20-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 5000 Pieces Per month |
| Air Exhausting Port Size: | PT1/8”~G3/8” | Air Inlet Port Size: | Air Inlet Port Size |
|---|---|---|---|
| Impact Force: | 1.2~48.5 KG’M/S | Impact Power: | 5.5~220.2N/M |
| Working Pressure: | 0.3~0.7Mpa | Body Material: | Extruded Aluminium Alloy |
| Product Name: | Air Hammer Vibrator | ||
| Highlight: | Pneumatic Control Impact Air Hammer Vibrator,0.7MPa Air Vibrator |
||

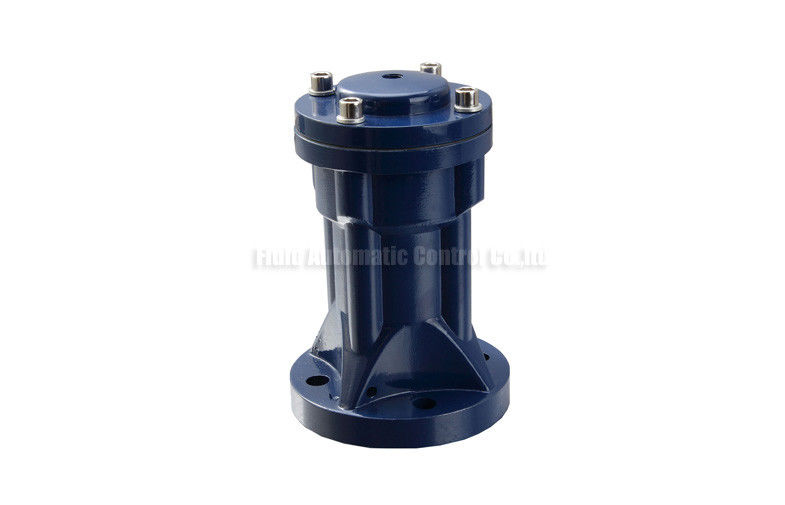

0.3-0.7MPa Working Pressure Pneumatic Control Impact Air Hammer Vibrator,Impact Force 1.2- 48.5 KG’M/S
SX series impact pneumatic air hammer body material aluminum alloy working pressure 0.3~0.7Mpa,impact force 1.2~48.5 KG’M/S,impact power 5.5~220.2N/M ,air inlet port size PT1/4”~PT3/8”,air exhausting port size PT1/8”~G3/8” e.g SX-60
Quick Detail:
* SX Series pneumatic air impact hammer
* Body material Aluminium Alloy
* Working pressure 0.3~0.7Mpa
* Impact force 1.2~48.5 KG’M/S
* Impact power 5.5~220.2N/M
* Air inlet port size G1/4”~G3/8”
* Air exhausting port size G1/8”~G3/8”
* Simple design,easy to operate
* Strong impact force,low noise
* Imapct time interval can be adjustable
* Lubrication free,safety application
* No need for maintenance,cost effectively
* Long service life cycle up to 1000000 cycles
Applications:
SX series impact pneumatic air hammer can be applicable in the explosion-proof,dusty,humidity occassions.
SX series impact pneumatic air hammer widely used in the chemical,food,medical treatment,glass,pesticides,cement industrial to solve the problem of material wall adhesion,block,hanging,bridging etc
Specifications:
|
Dimension |
Technical Parameter |
|||||||||
|
MODEL |
A |
B |
C |
D |
E |
F |
Operating Pressure (Mpa) |
Impact force (KG'M/S) |
Impact Power(N.M) |
Weight (KG) |
|
SX-30 |
9 |
67 |
82 |
135 |
1/4″PT |
1/8″PT |
0.3～0.7 |
1.2～1.9 |
5.5～13.1 |
1.3 |
|
SX-40 |
11 |
77 |
98 |
175 |
1/4″PT |
1/8″PT |
0.3～0.7 |
2.7～4.2 |
9.2～22.3 |
2.2 |
|
SX-60 |
12.5 |
110 |
143 |
220 |
1/4″PT |
1/4″PT |
0.3～0.7 |
7～11.2 |
20.6～49.0 |
5.6 |
|
SX-80 |
17 |
140 |
170 |
275 |
3/8″PT |
3/8″PT |
0.4～0.5 |
15.5～24.2 |
45.1～109.0 |
11.5 |
|
SX-100 |
18.5 |
150 |
195 |
310 |
3/8″PT |
3/8″PT |
0.5~0.7 |
30.2～48.5 |
60.5～220.2 |
18 |
Pneumatic impact hammer,air impact hammer,hammer vibrator
